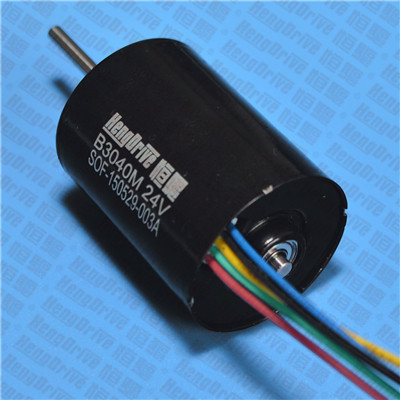

B3040M

Output Power 輸出功率: 1W~10W

Weight 重量: 95g (Approx.)

Brushless DC Motor-Typical Application 直流無刷電機-典型應用Home Application: Water pumps, Air pumps,Small Appliance, Fanner, Electric Curtain

家用電器：水泵，氣泵，小家電，風扇，電動窗簾，水泵，氣泵Medical Apparatus: Medical Pump, Infusion pump, Surgery Tools, Medical Stirrer, centrifugal Machine     醫療器械：醫療泵，輸液泵，手術器械，攪拌機，離心機Industry Equipment: Electric Valve, Actuator, Micro Pumps                              工業設備：閥門，致動器，水泵，氣泵，液泵，油泵Business Equipment: Printer, Copier, Projector, ATM, Vending Machine  商業設備：打印機，復印機，投影機，ATM機，售賣機

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3040M-S01

5-12

6

1992

0.14

15

1464

0.71

2.30

56.54

0.9

B3040M-S02

8-26

12

3698

0.10

10

3165

0.44

3.32

69.43

2.8

B3040M-S03

8-26

12

3986

0.14

30

2830

1.24

8.89

103.4

2.8

B3040M-S04

8-26

24

3615

0.06

10

3139

0.23

3.29

76.02

2.4

B3040M-S05

8-26

24

5475

0.09

30

4384

0.84

13.77

150.6

2.4

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

Usable machine screw length 3.0mm max. from motor mounting surface

Unit: Millimeter

B3040M-S02                12V

     B3040M-S04              24V
