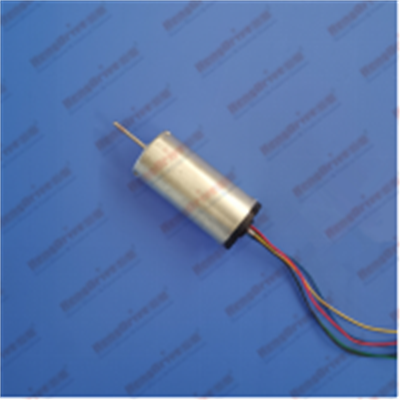

B2248M直流無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命3000-15000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B2248M |
Output Power 輸出功率: 1W~12W |
Weight 重量:70g(Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Home Application: Small Appliance, Electric Curtain, Electric Windows/Door, Small Cross-Flow Fan 家用電器：小家電，電動窗簾，電動門窗，小型貫流風機 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine 醫療器械：醫療泵，手術器械，攪拌機，離心機 Industry Facilities: Printing Machine, Binding Machine, Cutting Machine, Electric Valve 工業設備：印刷機，裝訂機，裁剪機，電動閥門 Business Equipment: Cash Register, ATM, TV Set Frame 商業設備：點鈔機，ATM機，電視機架 Personal Care: Massager, Vibrator, Malaxation Apparatus, Scrub Apparatus 個人護理：按摩器，震動器，揉捏器，磨砂器 |
|||
|
Model 型號 |
Voltage(V) 電壓 |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B2248M-S01 |
8-26 |
7.4 |
4970 |
0.16 |
9.81 |
3514 |
0.87 |
3.6 |
33.47 |
2.6 |
|
B2248M-S02 |
8-26 |
12 |
7609 |
0.15 |
9.81 |
5997 |
0.81 |
6.16 |
46.27 |
3.3 |
| B2248M-S03 | 8-26 |
24 |
9170 |
0.09 |
9.81 |
7373 |
0.49 |
7.57 |
50.02 |
2.1 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs 特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命3000-15000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |
Outline Drawing 外形圖:
|
Usable machine screw length 2.5mm max. from motor mounting surface Unit: Millimeter |
|
Performance Curve 性能曲線:
|
B2248M-S03 24V |
品性能曲線圖.png)
品性能曲線圖.png)
