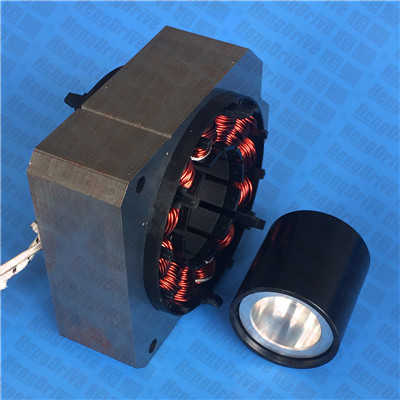

B78M 直流無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B78M Series |
Output Power 輸出功率: 20W~130W |
Weight 重量: 1000g (Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用
Specialized for Variable Frequency Refrigerator Compressor, Pump
專用于冰箱變頻壓縮機和泵 |
|||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B7825M-S01 |
8-26 |
12 |
4989 |
0.95 |
160 |
3920 |
6.99 |
65.68 |
744.7 |
29.09 |
|
B7830M-S01 |
8-26 |
12 |
5010 |
0.71 |
250 |
3538 |
9.48 |
92.62 |
849.33 |
30.49 |
|
B7830M-S02 |
226-375VDC |
310 |
5151 |
0.043 |
290 |
3957 |
0.467 |
120.2 |
1250.62 |
1.87 |
|
B7833M-S01 |
8-26 |
12 |
4921 |
0.821 |
290 |
3525 |
10.71 |
107.5 |
1022.1 |
35.66 |
|
B7835M-S01 |
8-26 |
12 |
4985 |
0.8 |
290 |
3544 |
10.47 |
103.9 |
968.83 |
34.26 |
|
B7835MS02 |
AC110-230V |
220 |
5151 |
0.043 |
290 |
3957 |
0.467 |
120.2 |
1250.62 |
1.87 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
特征：雙轉向，信號功能，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

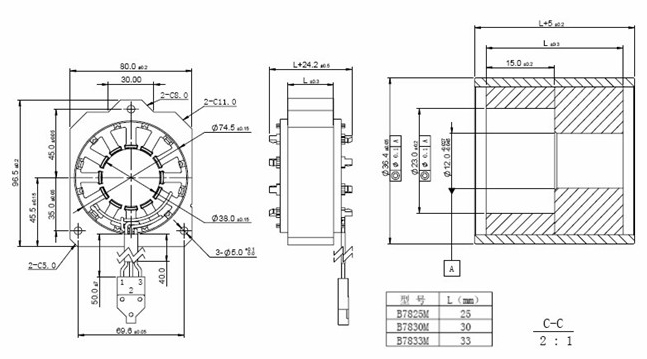

Outline Drawing 外形圖:
|
Usable machine screw length 4.0mm max. from motor mounting surface |
Unit: Millimeter |
Performance Curve 性能曲線:
|
B7825M-S01 12V |
B7830M-S01 12V |
