專業研發、生產無刷電機及其驅動器

B2934F

Output Power 輸出功率: 10W~130W

Weight 重量: 105g (Approx.)

Super High Speed Brushless DC Fan--Typical Application

超高速無刷直流風機-典型應用

Personal Care: Hair Dryer, Hair Curler   個人護理：電吹風，卷發器

Home Application: Vacuum Cleaner     家用電器：吸塵器

Medical Apparatus: High-speed Fan, High-speed Air Pump

醫療器材：高速風機，高速氣泵

Industry Facilities & Business Equipment: High-speed Fan, High-speed Air Pump
工業及商業設備：高速風扇，高速氣泵

Model

型號

Voltage(V) 電壓

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Switch

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2934F

AC100~245

AC110

AC220

112000

-

S1

80000

0.56

72

-

1.2

S2

90000

0.63

83

S3

100000

0.76

95

Notice: Data in this typical specification sheet are the standard version, it is recommended to be used directly.注意：上述規格為標準通用規格，建議直接使用。

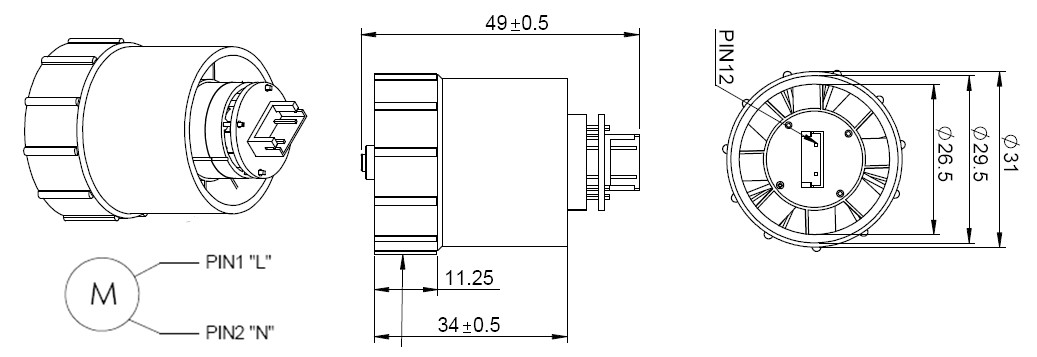

Usable machine screw length 3.0mm max. from motor mounting surface                 Unit: Millimeter

B2934F-S01                         AC220V

Notes:
