B5665M 無刷直流電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時。
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B5665M |
Output Power 輸出功率: 35W~150W |
Weight 重量: 385g (Approx.) |
|
Brushless DC Motor-Typical Application 無刷直流電機-典型應用 Automotive Parts: Pump, Fan, Actuator, Parking Heater 汽車部件：泵，風機，致動器，駐車加熱器 Home Application: Pump, Cross-Flow Fan, Electric Fan, Electric Window & Door, Blender 家用電器：泵，貫流風機，電風扇，電動門窗，攪拌機 Medical Apparatus: Pump, Medical Bed, Electric Wheel Chair, Surgery Tools, 醫療器械：泵，醫療床，電動輪椅，手術器械，手術臺，離心機 Power Tools: Screwdriver, Drill, Air Compressor 電動工具：電動螺絲批，電鉆，氣體壓縮機 Business Equipment: Printer, Copier, Projector, ATM, Vending Machine, Shredder 商業設備：打印機，復印機，投影機，ATM機，售賣機，碎紙機 Personal Care: Massager, Vibrator 個人護理：按摩器，震動器 |
|||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B5665M-S01 |
8-14 |
12 |
3060 |
0.51 |
150 |
2500 |
4.51 |
39.3 |
286 |
8.0 |
|
B5665M-S02 (N35) |
8-14 |
12 |
2090 |
0.35 |
250 |
1690 |
5.27 |
44.2 |
413 |
8.0 |
|
B5665M-S03 |
8-26 |
24 |
3520 |
0.28 |
190 |
3000 |
3.55 |
60.0 |
490 |
8.0 |
|
B5665M-S04 (N35) |
8-26 |
24 |
2360 |
0.29 |
480 |
1580 |
5.42 |
79.5 |
737 |
8.0 |
|
B5665M-S05 |
12-40 |
36 |
4350 |
0.38 |
180 |
3210 |
2.22 |
60.5 |
464 |
8.0 |
|
B5665M-S06 (N35) |
12-40 |
36 |
3490 |
0.25 |
500 |
2700 |
5.51 |
141.1 |
758 |
8.0 |
|
B5665M-S07 |
8-26 |
24 |
8500 |
1.2 |
105 |
7000 |
4.1 |
90 |
315 |
8.0 |
|
B5665M-S08 |
226-375DC |
310VDC |
2195 |
0.15 |
300 |
2077 |
0.57 |
65.3 |
5581 |
1.5 |
|
B5665M-S09 |
8-26 |
24 |
10719 |
1.14 |
66.2 |
9519 |
3.91 |
65.98 |
590.80 |
8.0 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs 特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

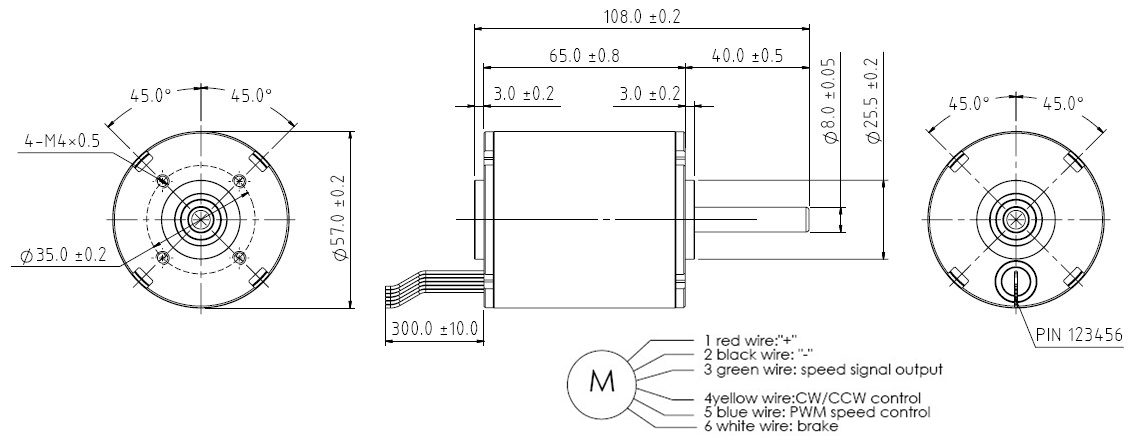

Outline Drawing 外形圖: Usable machine screw length 6.0mm max from motor mounting surface Unit: Millimeter
Performance Curve 性能曲線:
|
B5665M-S02 12V |
B5665M-S03 24V |
