專業研發、生產無刷電機及其驅動器

B3650M

Output Power 輸出功率: 5W~80W

Weight 重量: 180g (Approx.)

Brushless DC Motor-Typical Application 直流無刷電機-典型應用

Automotive Parts: Pump, Fan   汽車部件：泵、風機

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine,

Milk Tea Machine  家用電器：白色家電，小家電，風扇，咖啡機，奶茶機

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

Centrifugal Machine

醫療器械：醫療泵，手術器械，攪拌器，離心機

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

工業設備：泵，手持電批，小型壓縮機

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

商業設備：打印機，復印機，投影機，ATM機，售賣機

Personal Care: Hair Dryer, Electric Shaver, Massager

個人護理：風筒，電動須刨，按摩器

Model

型號

Voltage(V) 電壓

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3650M-S01

8-26

12

5300

0.46

23.5

4600

1.53

11.35

77.8

2.5

B3650M-S02

8-26

24

13800

0.32

30.0

10500

1.99

35.69

103.7

3.0

B3650M-S03

8-26

24

4327

0.18

45.0

3714

1.01

17.49

316.8

2.5

B3650M-S04

8-26

24

19400

0.44

18.0

17300

1.80

32.6

75.9

3.0

B3650M-S05

8-26

24

28518

0.64

32.37

23172

4.73

78.56

171.42

6.00

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

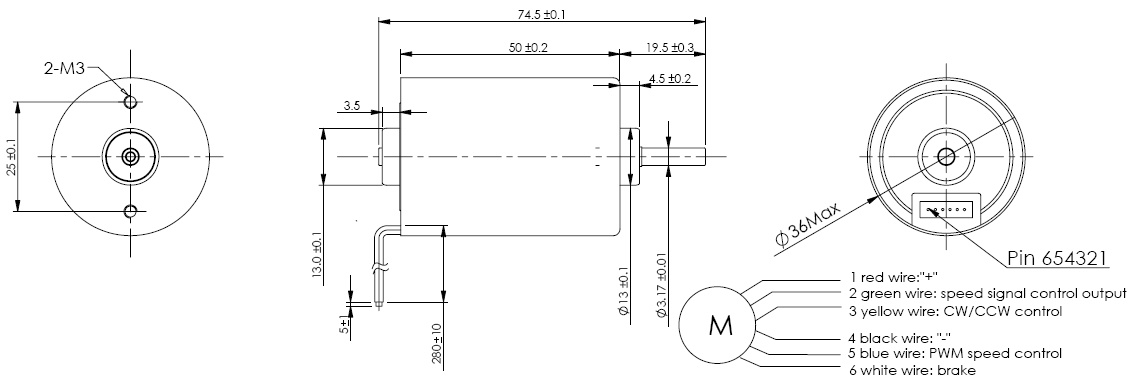

Usable machine screw length 4.0mm max. from motor mounting surface

Unit: Millimeter

B3650M-S03                 24V

  B3650M-S05               24V
