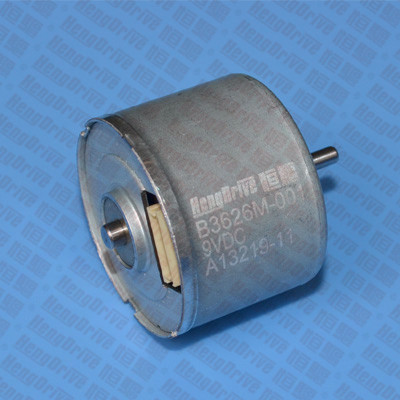

B3626M 直流無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B3626M |
Output Power 輸出功率: 1W~40W |
Weight 重量: 95g (Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Automotive Parts: Pump, Fan 汽車部件：泵，風機 Home Application: White Goods, Small Appliance, Fanner, Electric Curtain 家用電器：白色家電，小家電，風扇，電動窗簾 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine 醫療器械：醫療泵，手術器械，攪拌機，離心機 Business Equipment: Printer, Copier, Projector, ATM, Vending Machine 商業設備：打印機，復印機，投影機，ATM機，售賣機 Industry Equipment: Electric Valve, Actuator, Micro Pump 工業設備：閥門，致動器，微型泵 Personal Care: Hair Dryer, Electric Shaver, Massager 個人護理：風筒，電動須刨，按摩器 |
|||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B3626M-S01 |
8-26 |
9 |
2720 |
0.12 |
13.73 |
985 |
0.57 |
1.42 |
21.51 |
2.5 |
|
B3626M-S02 |
8-26 |
12 |
4460 |
0.18 |
10.79 |
3750 |
0.57 |
4.23 |
66.74 |
2.5 |
|
B3626M-S03 |
8-26 |
24 |
5998 |
0.12 |
15 |
4858 |
0.50 |
7.63 |
78.91 |
2.5 |
|
B3626M-S04 |
8-26 |
24 |
11990 |
0.35 |
14.715 |
9420 |
0.996 |
14.52 |
63.79 |
2.5 |
|
B3626M-S05 |
8-26 |
24 |
39845 |
0.26 |
9.81 |
33327 |
1.78 |
34.24 |
58.99 |
3.0 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

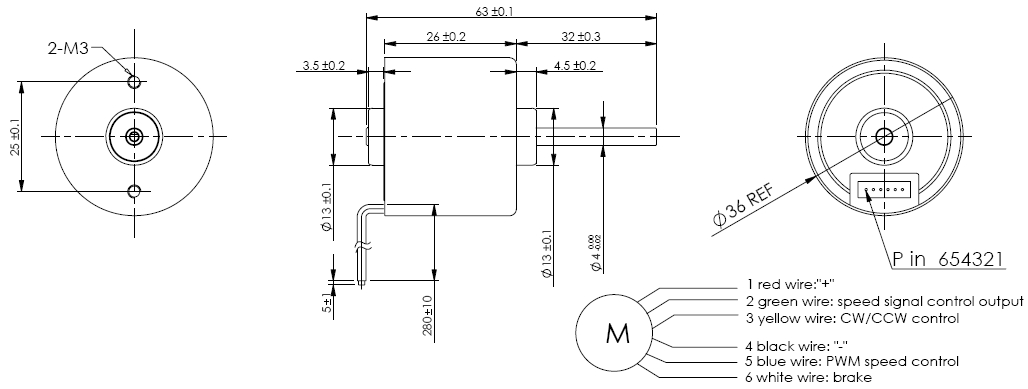

Outline Drawing 外形圖:
|
Usable machine screw length 3.0mm max. from motor mounting surface |
Unit: Millimeter |
Performance Curve 性能曲線:
|
B3626M-S02 12V |
B3626M-S05 24V |
