B2838M

Output Power 輸出功率: 1W~30W

Weight 重量: 75g (Approx.)

Brushless DC Motor-Typical Application 直流無刷電機-典型應用

Automotive Parts: Pump, Valve   汽車部件：泵, 閥

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

家用電器：白色家電，小家電，電風扇，電動窗簾

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools,

Medical Stirrer, Centrifugal Machine

醫療器械：醫療泵，血壓計，手術器械，攪拌機，離心機

Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump,

Water Pump,Vacuum Pump

電動工具：電動閥門，手持電批，氣泵，水泵，真空泵

Business Equipment: Printer, Copier, Projector, Scanner,

Cash Register

商業設備：打印機，復印機，投影機，掃描儀，點鈔機

Personal Care: Hair Dryer, Electric Shaver, Massager 個人護理：風筒，電動須刨，按摩器

Model

型號

Voltage(V) 電壓

No Load 空載

Rated Load 額定負載

Stall堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2838M-S01

6-12

7.4

4400

0.15

7.0

4100

0.68

3.0

38.0

1.6

B2838M-S02

8-26

12

3900

0.09

12.0

3200

0.58

4.1

69.4

1.6

B2838M-S03

8-26

24

7640

0.15

18.0

4700

0.9

9.0

48.0

2.50

B2838M-S04

8-26

24

9400

0.18

24.0

5800

1.38

14.6

60.0

2.50

B2838M-S05

8-26

24

16000

0.30

20.0

13000

1.75

27.4

40.0

2.50

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

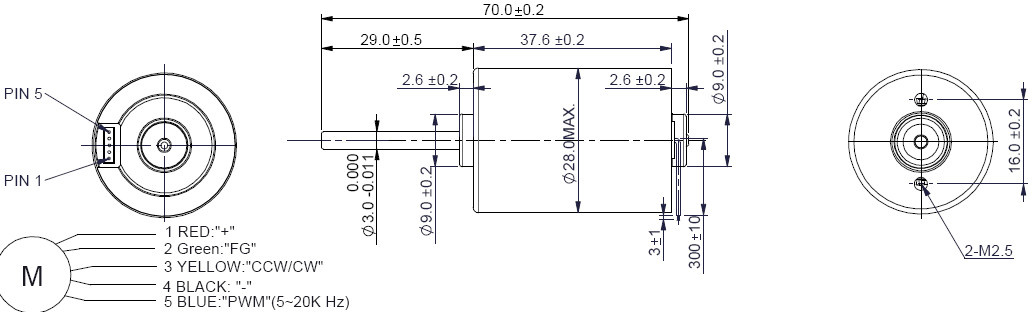

Usable machine screw length 3.0mm max. from motor mounting surface

Unit: Millimeter

  B2838M-S02               12V

B2838M-S04               24V
