專業研發、生產無刷電機及其驅動器

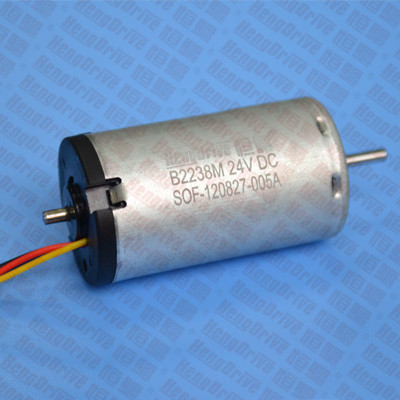

B2238M

Output Power 輸出功率: 1W~6W

Weight 重量: 54g (Approx.)

Brushless DC Motor-Typical Application 直流無刷電機-典型應用

Home Application: Small Appliance, Electric Curtain, Electric Windows/Door,

Small Cross-flow Fan

家用電器：小家電，電動窗簾，電動門窗，小型貫流風機

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

Centrifugal Machine

醫療器械：醫療泵，手術器械，攪拌機，離心機

Industry Facilities: Printing Machine, Binding Machine, Cutting Machine,

Electric Valve

工業設備：印刷機，裝訂機，裁剪機，電動閥門

Business Equipment: Cash Register, ATM, TV Set Frame

商業設備：點鈔機，ATM機，電視機架

Personal Care: Massager, Vibrator, Malaxation Apparatus, Scrub Apparatus

個人護理：按摩器，震動器，揉捏器，磨砂器

Model

型號

(Brushless DC 無刷)

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Starting 起動

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2238M-S01

5-14

6

4000

0.09

4.61

3075

0.45

1.49

20.0

0.8

B2238M-S02

8-26

12

4480

0.04

3.92

3490

0.19

1.44

17.7

0.85

B2238M-S03

8-26

24

9980

0.08

5.886

8090

0.33

4.98

30.7

0.75

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

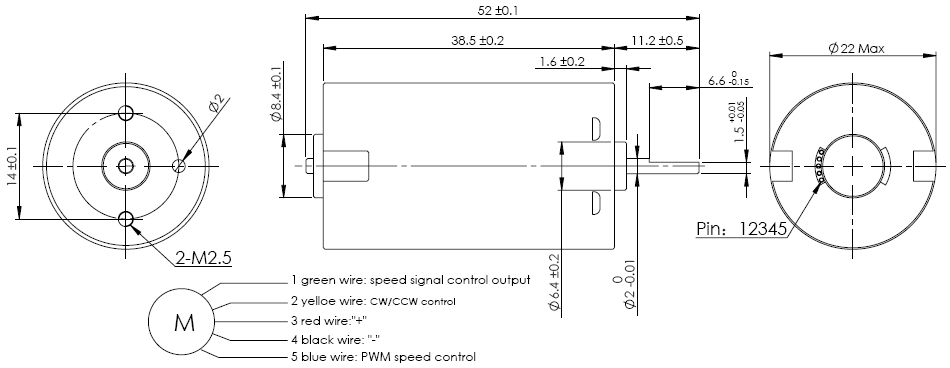

Usable machine screw length 2.5mm max. from motor mounting surface

Unit: Millimeter

B2238M-S02                 12V

B2238M-S03               24V
