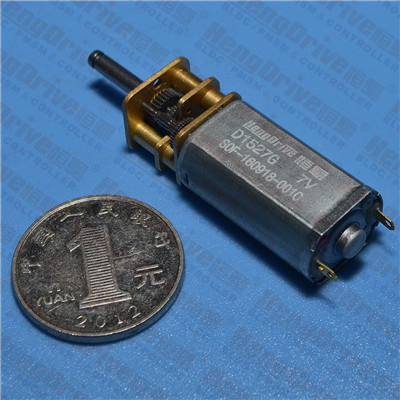

D1527G

Output Power 輸出功率: 0.05~2.2W

Weight 重量:78g (Approx.)

PM DC Gear Motor-Typical Application 有刷直流減速電機-典型應用

智能電表小型重合閘 - Small Reclosing for Smart Ammeter

智能鎖、電子鎖 – Intelligent Lock

Model

型號

Voltage(V) 電壓

No Load 空載

Rated Load 額定負載

Starting 起動

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (Nm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (Nm)

Current (A)

D1527G-S01

(Gear Ratio 63)

5-9

7

133

0.047

0.03

90

0.154

0.282

0.091

0.374

D1527G-S02

(Gear Ratio 63)

5-9

7

161

0.069

0.045

119

0.289

0.56

0.171

0.907

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、齒輪箱的減速比和尺寸、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

D1527G-S01             7V

D1527G-S02               7V
