B5020G

Output Power 輸出功率:    0.3-11W

Weight 重量:93g (Approx.)

Brushless DC Gear Motor-Typical Application (In development) 無刷直流減速電機-典型應用（研發中）

家用電器：微波爐

Home Appliance: Microwave Oven

Model

型號

Voltage(V) 電壓

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (Nm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (Nm)

Current (A)

B5020G-S01

（Gear Ratio 34）

8-30

28

65

0.029

1.00

24

0.235

2.515

1.489

0.363

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、齒輪箱的減速比和尺寸、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

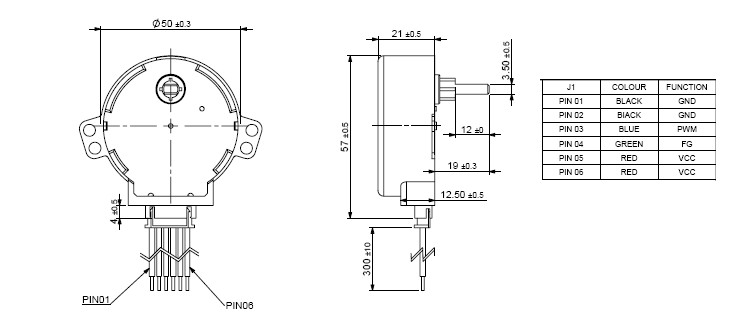

B5020G-S01           28V
