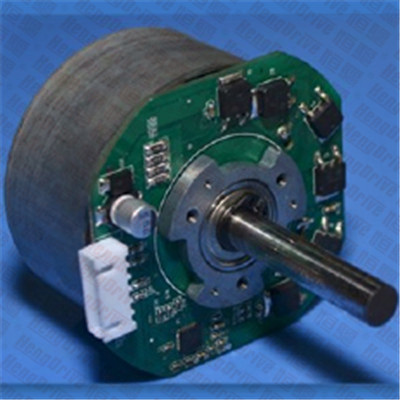

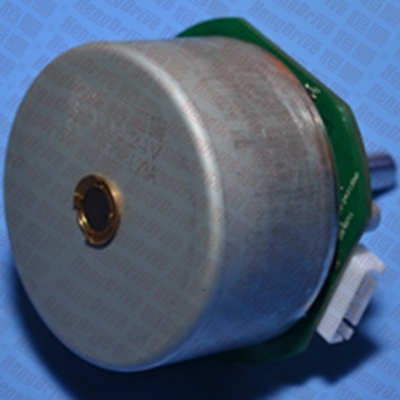

B6030S 外轉子直流無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-30000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B6030S |
Outer Rotor |
Output Power 輸出功率: 5W~80W |
Weight 重量: 305g (Approx.) |
|
外轉子 |
||||
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Automobile Parts: EGR Pump, Urea Pump 汽車部件：尾氣處理泵，尿素泵 Home Application: White Goods, Small Appliance, Electric Fanner, Stirrer, Cross-flow Fan 家用電器：白色家電，小家電，電風扇，攪拌器，貫流風機 Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine 醫療器械：醫療泵，醫用攪拌器，離心機 Industry Equipment: Air Compressor, Electric Valve 工業設備：氣體壓縮機，電動閥門 Business Equipment: Printer, Copier, Projector, ATM, Vending Machine, Shredder 商業設備：打印機，復印機，投影機，ATM機，售賣機，碎紙機 Personal Care: Hair Dryer, Massager 個人護理：風筒，按摩器 |
||||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B6030S-S01 |
100-340 dc |
310 dc |
2300 |
0.13 |
294 |
1370 |
0.57 |
42.3 |
730 |
2.0 |
|
B6030S-S02 |
8-26 |
24 |
2917 |
0.25 |
196 |
2553 |
2.58 |
52.45 |
1571 |
4.5 |
|
B6030S-S03 |
8-26 |
12 |
3262 |
0.59 |
150 |
2688 |
4.61 |
42.25 |
852 |
7.0 |
|
B6030S-S04 |
8-26 |
24 |
2834 |
0.24 |
350 |
2274 |
4.35 |
83.4 |
1772 |
7.0 |
|
B6030S-S05 |
8-38 |
36 |
1598 |
0.09 |
500 |
1028 |
2.23 |
53.9 |
1402 |
3.0 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs
特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-30000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

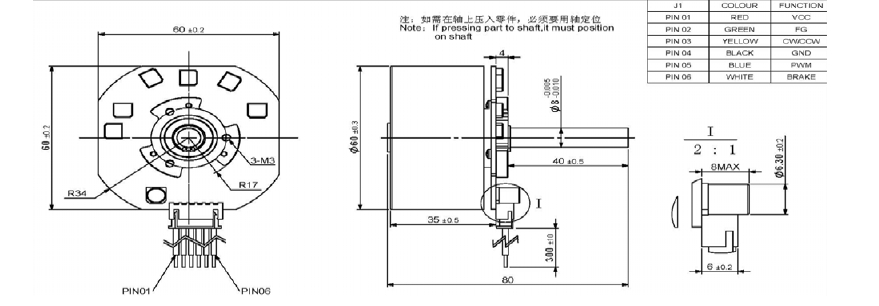

Outline Drawing 外形圖:
|
|
Unit: Millimeter |
Performance Curve 性能曲線:
|
B6030S-S03 12V |
B6030S-S04 24V |
