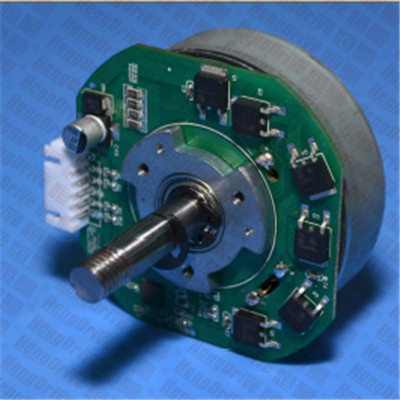

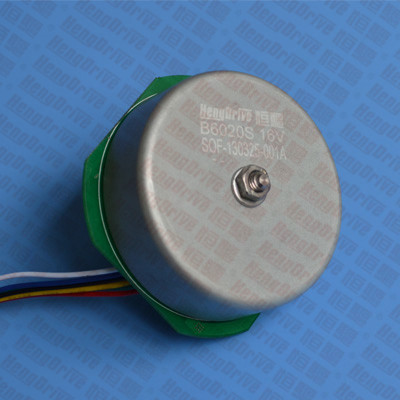

B6020S

Outer Rotor

Output Power 輸出功率: 5W~60W

Weight 重量: 225g (Approx.)

外轉子

Brushless DC Motor-Typical Application 直流無刷電機-典型應用

Automobile Parts: EGR Pump, Urea Pump  汽車部件：尾氣處理泵，尿素泵

Home Application: White Goods, Small Appliance, Electric Fanner, Stirrer,

Cross Flow Blower

家用電器：白色家電，小家電，電風扇，攪拌器，貫流風機

Medical Apparatus: Medical Pump, Medical Stirrer, centrifugal Machine

醫療器械：醫療泵，醫用攪拌器，離心機

Industry Equipment: Air Compressor, Electric Valve

工業設備：氣體壓縮機，電動閥門

Business Equipment: Printer, Copier, Projector, ATM,

Vending Machine, Shredder

商業設備：打印機，復印機，投影機，ATM機，售賣機，碎紙機

Personal Care: Hair Dryer, Massager   個人護理：風筒，按摩器

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B6020S-S01

8-26

24

3975

0.19

168.0

2948

2.83

51.87

644

4.3

B6020S-S02

8-26

24

2606

0.11

158.1

1940

1.75

31.13

618

3.5

B6020S-S03

8-26

12

1659

0.13

88.3

1334

1.42

12.33

450

3.5

B6020S-S04

8-26

24

2223

0.10

130

1725

1.34

23.49

580

3.5

B6020S-S05

8-26

24

5263

0.23

180.2

4544

4.34

85.75

1317

7

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

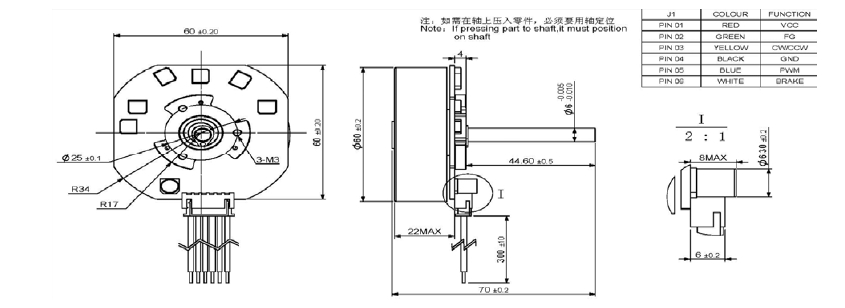

Unit: Millimeter

B6020S-S01                 24V

 B6020S-S05              24V
