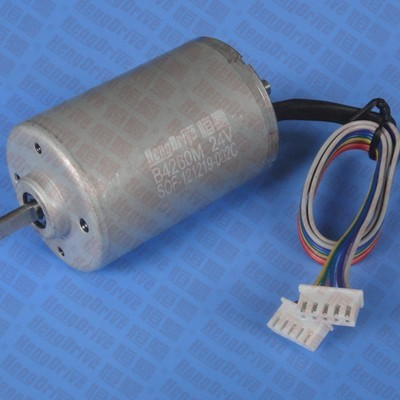

B4260M 無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B4260M |
Output Power 輸出功率: 10W~40W |
Weight 重量: 290g (Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Automobile Parts: Pump, Fan, Actuator, Parking Heater 汽車部件：泵，風機，致動器，駐車加熱器 Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Meat Grinder 家用電器：白色家電，小家電，無風葉電風扇，有風葉風扇，咖啡機，絞肉機 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine 醫療器械：醫療泵，手術器械，攪拌機，離心機 Business Equipment: Printer, Copier, Projector, ATM, Vending Machine 商業設備：打印機，復印機，投影機，ATM機，售賣機 Power Tools: Screwdriver, Drill, Air Compressor 電動工具：電動螺絲批，電鉆，氣體壓縮機 Personal Care: Hair Dryer, Massager, Vibrator 個人護理：風筒，按摩器，震動器 |
|||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B4260M-S01 |
8-26 |
12 |
4590 |
0.28 |
45.00 |
3500 |
1.88 |
16.54 |
190.2 |
3.0 |
|
B4260M-S02 |
8-26 |
24 |
4260 |
0.26 |
95.06 |
3270 |
1.85 |
32.58 |
409.2 |
3.0 |
|
B4260M-S03 |
8-26 |
24 |
4046 |
0.24 |
60.04 |
3342 |
1.21 |
21.01 |
344.6 |
2.5 |
|
B4260M-S04 |
85-265 ac |
120 ac |
9700 |
0.19 |
19.816 |
7930 |
0.368 |
16.45 |
96.5 |
1.0 |
|
B4260M-S05 |
85-265 ac |
220 ac |
10760 |
0.12 |
24.525 |
8500 |
0.247 |
21.85 |
116.8 |
1.0 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

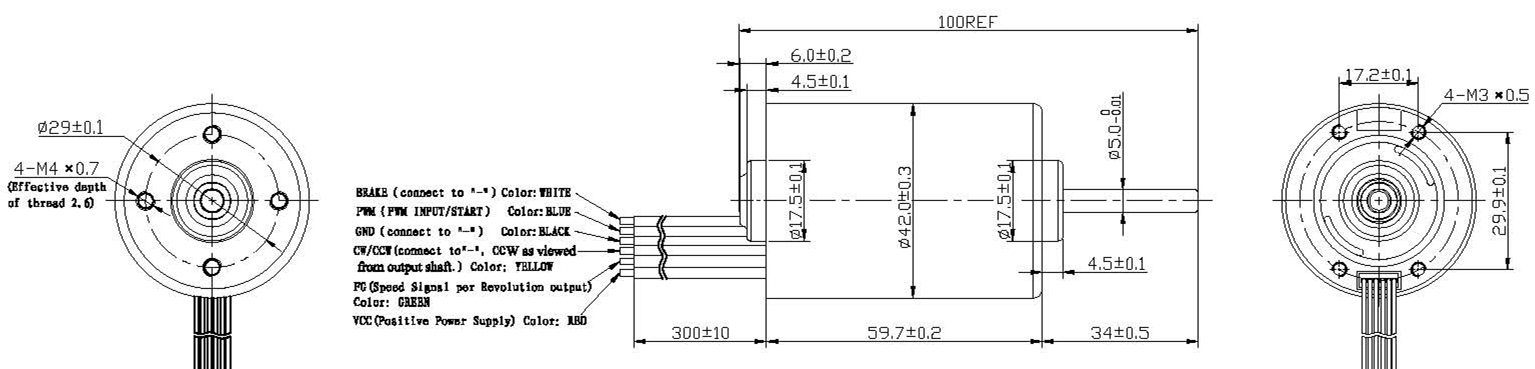

Outline Drawing 外形圖: Usable machine screw length 6.0mm max from motor mounting surface Unit: Millimeter
Performance Curve 性能曲線:
|
B4260M-S01 12V |
B4260M-S02 24V |
