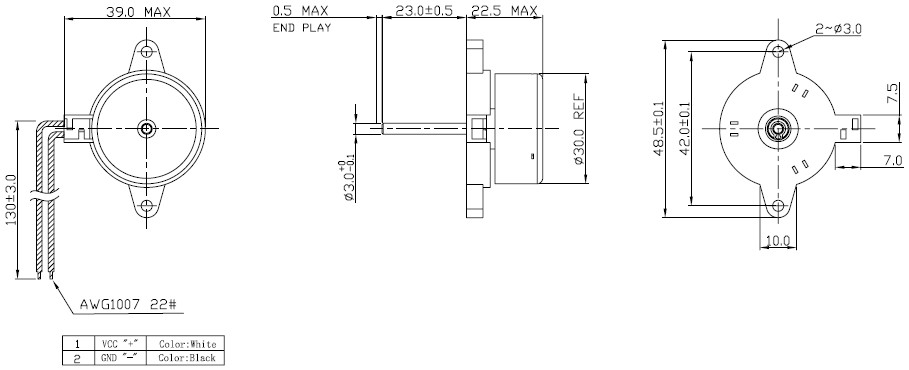

B3020S

Outer Rotor

Output Power 輸出功率: 0.3W~12W

Weight 重量: 75g (Approx.)

外轉子

3-Phase Brushless DC Motor-Typical Application 三相無刷直流電機-典型應用

Home Application: Small Electric Fanner, USB Fan, Small Air Fresher, Electric Cooker  家用電器：小功率電風扇，USB電風扇，小功率空氣清新機，電飯煲

Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan   醫療器械：醫療泵，超靜音風扇

Industry Equipment: Electric Valve, Actuator  工業設備：電動閥門、致動器

Business Equipment: Printer, Copier, Projector   商業設備：打印機，復印機，投影機

Personal Care: Shaver, Hair Dryer, Massager   個人護理：電動剃須刀，風筒，按摩器

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Starting 起動

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3020S-S01 (RU-M)

5-12

5

4600

0.26

1.472

4150

0.36

0.64

15.12

1.29

B3020S-S02(NdFeB)

5-12

5

3060

0.19

6.308

2130

0.42

1.41

20.56

0.96

B3020S-S03 (RU-M)

8-26

12

11450

0.17

4.433

8530

0.49

3.96

17.39

1.44

B3020S-S04(NdFeB)

8-26

12

7090

0.19

9.391

5440

0.63

5.35

40.54

2.09

B3020S-S05 (RU-M)

8-26

24

14680

0.11

5.886

7810

0.37

4.82

12.57

0.66

B3020S-S06(NdFeB)

8-26

24

11450

0.15

10.864

9050

0.57

10.30

51.89

2.16

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

B3020S-S01                     5V DC

B3020S-S05                       24V DC
